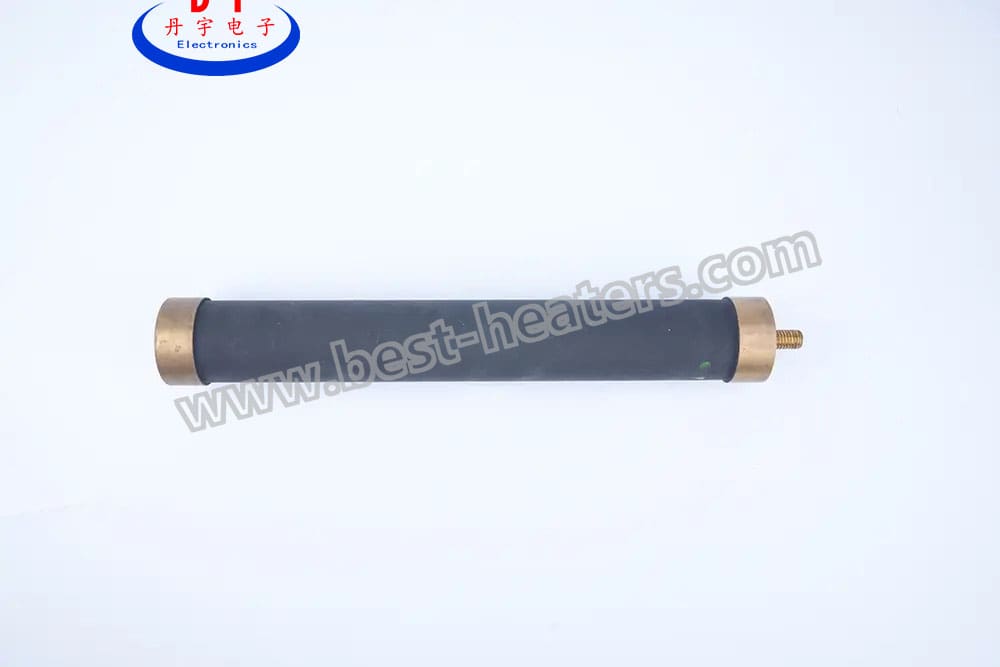

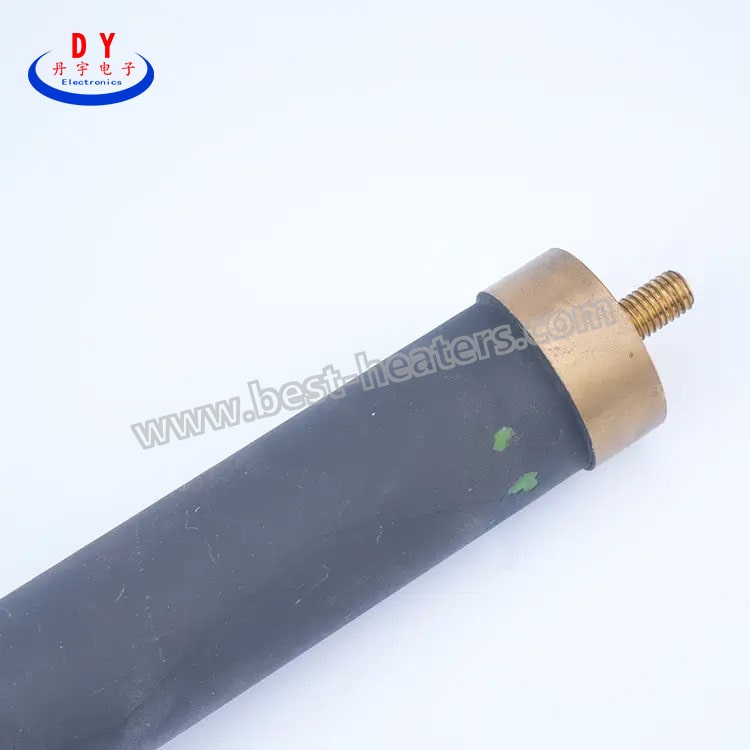

RIPS High Voltage Tube Cylinder Resistor is a type of ceramic composition thick film resistor by silkscreen printing a layer of paste or slurry to achieve conductivity, thick film resistors are widely used and play a very important role in high voltage circuits, which serves as basic accessories in the power and electrical industry, basic physics research, national defense technology and other fields. Because of its high voltage and wide range of resistance properties, it is commonly used in high-voltage devices such as high-frequency converters, high-voltage power supplies, detection equipment, high voltage soft starter.
路 High Power Density
路 Excellent HF Characteristics
路 Anti-pulse, High-Temperature Appliance
路 Anti-pulse, High stability
| Mode |
Rated power(W)
Ambient
Temperature=25鈩
|
Max.Continuous
Oper.Volt(KV)
|
Resistance | Dimensions(mm) | |||
| Min | Max | A | B | C | |||
| RIPS20 | 3 | 1 | 200 | 1G | 20.20 | 8.20 | 1.00 |
| RIPS26 | 5 | 2 | 250 | 1G | 26.90 | 8.20 | 1.00 |
| RIPS32 | 7 | 4.5 | 300 | 1.5G | 32.00 | 8.20 | 1.00 |
| RIPS39 | 9 | 4.5 | 400 | 1.5G | 39.0 | 8.20 | 1.00 |
| RIPS52 | 10 | 6 | 500 | 2.5G | 52.10 | 8.20 | 1.00 |
| RIPS78 | 15 | 6 | 900 | 4G | 77.70 | 8.20 | 1.00 |
| RIPS103 | 20 | 6 | 1K2 | 6G | 101.30 | 8.20 | 1.00 |
| RIPS124 | 25 | 6 | 1K5 | 8G | 123.30 | 8.20 | 1.00 |
| RIPS154 | 30 | 6 | 2K | 10G | 153.7 | 8.20 | 1.00 |
| TEST ITEM | SPECIFICATIONS |
| Resistance Tolerance |
卤5%,卤10%
Tolerance to 1% on special order
|
| Temperature Coefficient |
100ppm/鈩(Referanced to +25鈩,鈻砇 taken at +125鈩 and -55鈩
|
| Load life | 1000灏忔椂 鈻砇鈮0.5% |
| Insulate resistance | 10G惟 |
| Encapsulation | High temperature siliconecon formal |
| Overload | 鈮1.5Pe聽 5s聽 鈻砇鈮0.5% |
| Thermal shock | 鈻砇鈮0.25% |
| Moisture resistance | 鈻砇鈮0.4% |
| Solderable Lead | 30卤3mm |
路聽 Broadcasting transmitting device
路聽 Rader system
路聽 Loading resistor
路聽 High and medium frequency devices
