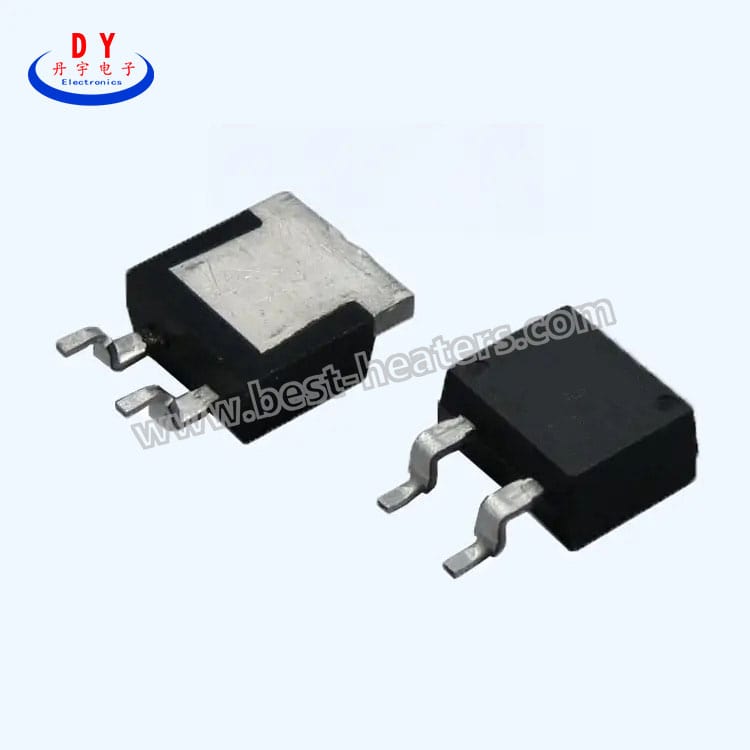

Wholesale Thick Film Resistor Supplier Distinguished, Produces Custom High Mix Small Volume Thick Film Resistors, Provides High Quality Products.
| 0.5% Tolerance Available | Easy Mounting |
| High Power Rating | 3 Different Resistors In Module Available |
| Non Inductive | 4 Terminals Available |
| Wide Ohmic Value Range | SOT-227 Standard Package |
Note: When the temperature is ≤70°C, it can be used at full power; when the temperature is >70°C, as shown in the graph,
The power that can be achieved gradually decreases, and when the temperature is 155°C, the power is 0. In order to improve the thermal conductivity,
The surface of the resistor and radiator should be coated with thermal conductive silicone grease, and the substrate should use M4 screws with a maximum torque of 1.3Nm.
Address: East, 5th Floor, Building 7, Hengmingzhu Industrial Park, Shajing Street, Baoan District, Shenzhen Tel: 189 2348 4775
| Type | RHP120 |
| Resistance Value Range | 0.1Ω-1MΩ |
| Tolerance | ±0.5%;±1%;±5% |
| TCR | ±50ppm/℃；±100ppm/℃；±250ppm/℃ |
| Max. Working Voltage | 1500V |
| Dielectric Strength | 5000VDC |
| Temperature Range | -55℃~155℃ |
| Test Item | Specifications |
Test Method
GB/T5729-03 IEC115-1
|
| Short Time Overload |
1.5 Times Rated Power 10s
△R≤±（0.25%R+0.05Ω）
|
4.13 |
| Rapid Temperature Change | △R≤±（0.25%R+0.05Ω） | 4.19 |
| Load Life | △R≤±（1%R+0.05Ω） | 4.25.2 |
| Humidity (steady states) | △R≤±（1%R+0.05Ω） | 4.24 |
| Temperature Cycling | △R≤±（1%R+0.05Ω） | 4.23 |
