Silicone rubber fiberglass flexible heater with custom voltage, wattage, and temperature control options. Reliable, waterproof, and long-lasting for industrial, medical, and aerospace applications. Certified quality with quick lead times and no minimum order.

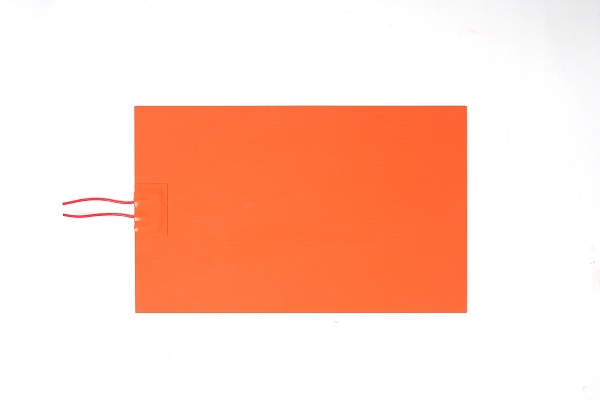

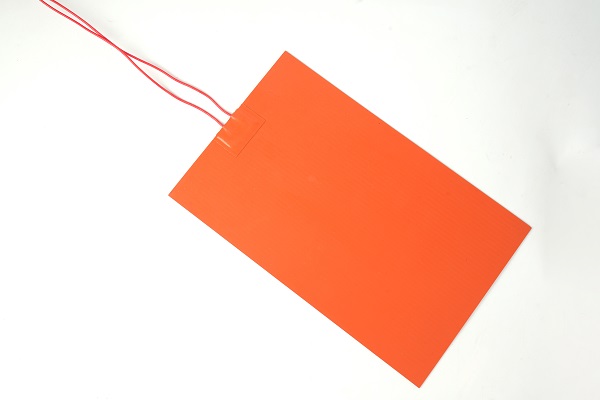

The 220V 100W 3M Adhesive Electric Silicone Rubber Heater is a high-performance heating element made from industrial-grade silicone material. Also known as a silicone heating pad or silicone heater, it provides precise and efficient heat distribution in a wide range of applications.
They can be custom-shaped to fit specific surfaces or objects.聽 These heating pads are widely used in aerospace, household appliances, medical equipment, and more.

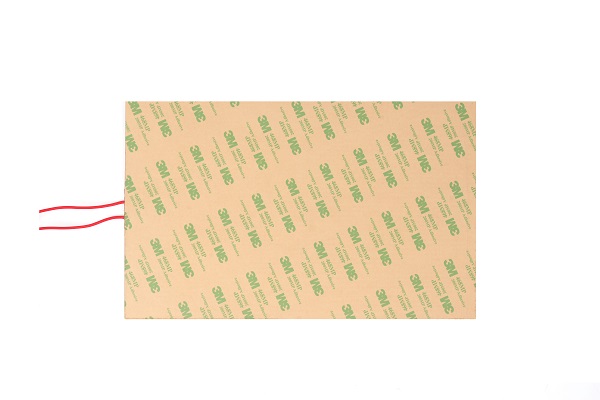

The 3M adhesive backing ensures easy installation and secure attachment to most surfaces, while maintaining thermal efficiency.
Like polyimide heaters, a silicone rubber heater consists of two layers of insulating silicone sandwiching a heating conductor. When powered, the conductor generates heat, and the desired temperature can be controlled by adjusting the resistance of the heating element. Compared with polyimide (PI) heaters, silicone heaters are thicker, providing higher temperature tolerance and cushioning.
Typical Structure:
| Parameter | Specification |
| Voltage | 220V AC |
| Power | 100W |
| Maximum Temperature | 250掳C |
| Power Density | Up to 5.0 W/cm虏 |
| Thickness | 1.5 mm standard (customizable 0.5鈥3.0 mm) |
| Size | Customizable |
| Adhesive Type | 3M 468, 3M 467, Crown 513, or custom |
| Heating Element Material | Nichrome, copper-nickel, constantan wire |
| Insulation Resistance | >5 M惟 |
| Dielectric Strength | 鈮1500V AC |
| Thermal Uniformity | 卤5掳C across surface |
| Response Time | <10 seconds to reach 100掳C |
| Lifespan | 3鈥5 years |
| Certifications | ISO9001, IATF16949 |
| Warranty | 1 Year |
| Optional Features | Thermostat, thermistor, K-type sensor, fuse protection |
To ensure precise manufacturing, please provide:
Q1: Can I customize the size, shape, and power of the silicone heater?
Yes, fully customizable for your application.
Q2: Can this heater operate in humid or corrosive environments?
Yes, the silicone and fiberglass materials resist moisture, humidity, oils, and mild chemicals.
Q3: How quickly does it heat?
Response time can be under 10 seconds to reach 100掳C, depending on thickness and power.
Q4: What is the expected lifespan?
Typically 3鈥5 years, depending on operating conditions.
Q5: Are low-voltage options available?
Yes, custom options for 12V, 24V, and 120V can be made.
Q6: Can I order samples?
Yes, sample orders are available for testing before bulk production.
Q7: What is the delivery time?
Sample orders: 3-7 days; bulk orders depending on quantity and customization.
Q8: Do you provide thermal design support?
Yes, our engineering team offers free design and installation guidance.
Q9: Are your products certified?
Yes, ISO9001 and IATF16949 certified, compliant with RoHS standards.
Q10: What temperature control options are available?
Danyu enables to offer one-stop customized heating solutions according to your specific requirements.
