Custom 5v 12v 24v 220v Kapton Polyimide Flexible Heater

Custom polyimide flexible heater for precision heating. Thin, durable, and customizable Kapton® heaters for aerospace, medical, and electronics use.

Price concessions: Own factory, 25% discount
Customized design: Design drawings available within 8 hours
On-time delivery: Delivery within 3-7 days
Professional service: Professional engineer tracking service

Key Benefits: Rapid heating
Dimension: Can be customized
Function: Instant heating
Diameter: 18mm, 20mm, 30mm, 35mm, 40mm or customize according to specific requirements

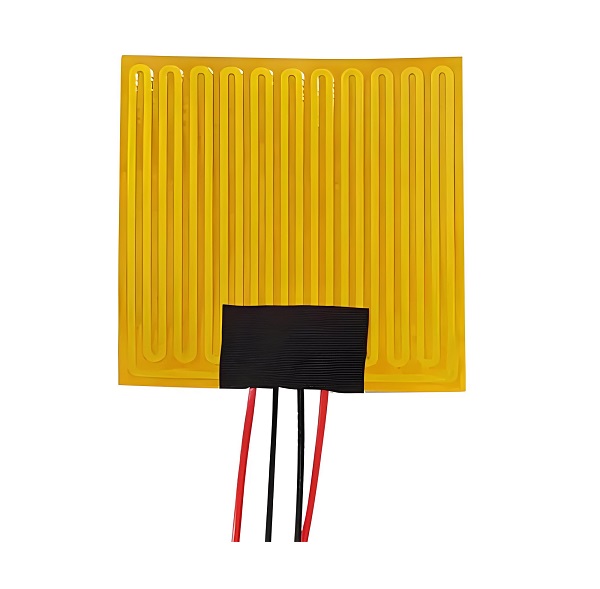

Kapton Polyimide Flexible Heater

A polyimide flexible heater is an innovative solution for applications requiring uniform heat in tight spaces. Made from Kapton polyimide film, it offers exceptional thermal stability, chemical resistance, and electrical insulation. Its thin profile allows installation in places where traditional heaters cannot fit, while its low mass delivers fast heat transfer and minimal thermal lag.

With our custom polyimide flexible heater service, you can specify exact dimensions, watt density, voltage, lead configuration, and even integrated sensors. This makes it an excellent choice for precision instruments, battery warming, aerospace electronics, medical diagnostic equipment, and satellite systems.

Our engineering team designs each custom flexible heater to maximize efficiency and longevity. We utilize computer-controlled etching for consistent element spacing, ensuring uniform heat distribution without hot spots. For projects requiring rapid prototyping or small-batch production, we can deliver samples quickly while maintaining strict quality control.

Characteristic of Polyimide Flexible Heater

Material: High-quality polyimide film (Kapton®) with etched foil heating elements
Thickness: Typically 0.13–0.3 mm (customizable)
Operating Temperature Range: -200°C to +200°C
Voltage Range: 1.5V–240V (custom options available)
Power Density: Up to 1.0 W/cm²
Custom Shapes: Irregular shapes, cut-outs, and multi-zone heating available
Adhesive Backing: Optional high-temperature PSA for easy mounting
Moisture Resistance: Suitable for humid or vacuum environments
Certifications: RoHS compliant, UL recognized upon request

Our PI Kapton Heater Capabilities

Item	Parameter	Item	Parameter
Materials	Polyimide	Max Working Temperature	200C (150C for long time usage)
Voltage Range	0-220V	Ambient temperature	-40C~200C
Insulation Withstand Voltage	1200V DC/Min	Heater Thickness	0.07-0.4mm
Insulation Resistance	≥100MΩ	Color	Yellow
Suggested Power Density	0.15-0.3W/cm2	Dielectric Strength	1000VRMS
Max Powe Density	0-1.2 W/cm2	Temperature Control Switch	Available
Power	Customized	Service Life	3-5Years
Warranty	1Year	Dimension	Customized

Applications

The polyimide flexible heater is widely used in industries where space is limited but precise heat is required:

Medical Devices – Blood analyzers, diagnostic instruments, infusion apparatus

Aerospace Systems – Satellite electronics, sensors, and battery warming

Electronics – LCD displays, sensors, and test equipment

Industrial Equipment – 3D printers, analytical devices, and battery packs

Case Study – Infusion Apparatus

One of our notable projects involved integrating a custom polyimide flexible heater into a high-precision infusion apparatus used in advanced medical facilities.

Project Challenge:

The client needed to keep infusion liquids at a stable 37°C ±0.5°C during delivery, even in rooms with fluctuating ambient temperatures between 18°C and 28°C. Traditional heaters caused uneven temperature zones, sometimes exceeding 1.5°C variation, which affected patient comfort and dosage accuracy.

Our Solution:

Our engineering team designed a Kapton polyimide flexible heater with a tailored contour to fit the device’s fluid channel. The heater’s profile was only 0.2 mm thick, ensuring minimal weight and no interference with the device’s internal layout. Using etched foil elements with optimized spacing, we achieved temperature uniformity within ±0.3°C across the heated surface.

Key Results:

Warm-up Time: Reduced from 3 minutes (previous model) to 1 minute 40 seconds

Temperature Stability: Maintained 37°C ±0.3°C during continuous operation

Energy Efficiency: Power consumption lowered by 18% compared to the old heating module

Device Lifespan: Projected increase of over 20% due to reduced thermal stress

Why Choose Danyu Electronics as Your Kapton Heater Supplier?

Danyu Electronics is a ten years experienced flexible heater manufacturer. We deliver heating solutions that are tailored to your exact needs. Here’s why customers choose us for their custom polyimide flexible heater projects:

We can print your company logo or identification marks directly on the heater surface or packaging to strengthen your brand identity.
Every order is handled with care from start to finish. We respond to all inquiries within 24 hours to keep your project moving.
Whether you order a single prototype or a large production batch, you’ll receive the same high level of quality and service.
We support all major shipping methods and maintain short lead times. Typical production is completed within 3–5 days, depending on quantity.
All heaters come with a standard 1-year warranty, ensuring peace of mind for your purchase.
Our engineering team offers complimentary support in heater design to create the most effective thermal solution for your application.
We can produce heaters in any size, shape, voltage, or wattage according to your specifications.
Packages can be customized from poly bags, carton boxes, or others to suit your distribution needs.

If you’re looking for a kapton polyimide flexible heater that meets your exact application needs, we can provide a complete solution—from design and material selection to manufacturing and testing. Our production follows ISO quality standards to guarantee reliable performance.
