Silicone Heating Pad: How to Choose, Install, and Use It Safely?

A silicone heating pad offers a simple way to deliver steady heat to surfaces, tools, or equipment. It stays flexible, handles high temperatures, and works well in both home and industrial settings. Many people use it to warm batteries, support 3D printing, protect sensors, or keep devices stable in cold conditions.

This guide gives you a clear look at how silicone heating pads work, how to choose the right one, and how to use them safely. Whether you’re upgrading a machine or solving a cold-weather problem, the following sections help you select and install the heater with confidence.

What Is a Silicone Heating Pad and How Does It Work?

A silicone heating pad is a thin, flexible heater made from silicone rubber and an internal etched-foil or wire-wound heating element. People choose this type of heater because it spreads heat smoothly across a flat or curved surface while staying lightweight and tough. It works by converting electrical energy into heat through resistance. Once powered, the internal metal foil warms up, and the silicone rubber transfers this heat outward in a steady, controlled way.

The material itself is an important part of the design. Silicone rubber has strong insulation properties, handles high temperatures without breaking down, and resists moisture and chemicals. These features let the pad stay stable even when wrapped around pipes, tools, batteries, or industrial surfaces. Because it stays flexible, users can apply it in tight areas where a rigid heater would not fit.

Many silicone heating pads also include a built-in thermistor, thermal fuse, or thermostat. These parts help regulate heat and avoid overheating, especially when the pad is used on sensitive equipment. In simple terms, a silicone heating pad is a safe and adaptable way to keep things warm in everyday and industrial environments.

Applications of a Silicone Heating Pad

Silicone heating pads are popular because they work in many scenarios, from light home use to demanding industrial tasks. In daily life, they appear in warming mats for pets, small desktop warmers, coffee mug heating plates, and gentle heat pads for comfort during cold seasons.

• 3D printer heated beds, especially for ABS, PETG, and other materials
• LiFePO4 and lithium battery warmers to maintain performance in cold weather
• Laboratory devices, incubators, and small equipment
• Machinery surface heating, adhesive curing, and temperature stabilization
• Oil pan, tank, and pipe heaters for freeze prevention
• Automotive and aerospace components, where compact heating is required

How to Choose the Right Silicone Heating Pad Size, Voltage, and Wattage?

Choosing the correct silicone heating pad depends on your surface size, power source, and required temperature. A pad that is too small or underpowered will heat slowly, while one with excessive wattage can run hotter than needed. The goal is to match the pad to the application and keep heat distribution balanced.

For voltage, 12V and 24V pads are commonly used in mobile or battery-powered systems. They are safe for vehicles, portable tools, and small laboratory setups. For larger surfaces or industrial machines, 110V or 220V pads deliver more power and heat up quickly.

For wattage, a helpful rule is to look at the watt density. A range of 0.3–0.6 W/cm² fits most general heating tasks. Higher watt density suits fast warm-up needs, while lower watt density works well when gentle heat is required. Below is a simple comparison table to help guide selection:

Pad Size (mm)	Voltage	Power (W)	Watt Density (W/cm²)	Typical Use
100 × 100	12 V	30 W	0.3	Small device heating
150 × 150	24 V	80 W	0.35	Battery warmers
200 × 200	110 V	150 W	0.38	3D printer beds
300 × 300	220 V	450 W	0.50	Industrial plates or tools

If you are unsure, start by defining the target surface temperature, ambient conditions, and the material you are applying the heater to. Metals heat fast, while plastics may require lower watt density to avoid damage.

Silicone Heating Pad Temperature Control Methods

Temperature control is one of the most important parts of using a silicone heating pad safely. There are three main approaches, each suited for different needs.

1. Thermostat Switch Built Directly Into the Silicone Heating Pad

A built-in thermostat switch is one of the simplest temperature control options for both silicone and polyimide heaters. It requires no motherboard or external controller.

The switch activates and stops power automatically based on preset temperatures. For example, a switch may cut power at 70°C and restart at 50°C.

Key points:

• Automatic on/off cycling
• No programming needed
• Low cost and easy wiring
• Wider tolerance: restart tolerance around ±15°C, cut-off tolerance around ±5°C
• Best for basic warming and non-critical tasks

This method is practical when you need safe temperature limits without demanding high precision.

2. Adjustable Controller With Thermistor or K-Type Sensor

For precise and long-term stable heating, an adjustable controller is the most dependable choice. These controllers work with a built-in thermistor or an external K-type temperature probe mounted on the silicone heating pad.

You can set a target temperature and hold it for long cycles. This makes it ideal for 3D printer heated beds, battery warmers, laboratory setups, and medical tools.

Benefits include:

• Much higher accuracy than thermostat switches
• Continuous, stable temperature control
• Available in digital (with display) or dial-type versions
• Supports PID algorithms for tight control

Though the cost is higher, the performance justifies it in sensitive applications.

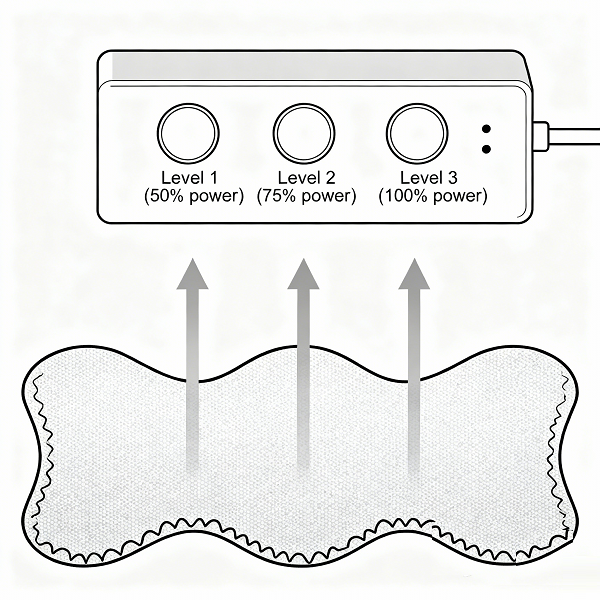

3. Multi-Level Resistance-Based Power Control

Some silicone heating pads use a resistance-type controller that changes output power in fixed steps instead of sensing real temperature.

A typical setup includes a three-level control system:

• Low Setting (50% power): light warming
• Medium Setting (75% power): moderate heat
• High Setting (100% power): full output

It works well for comfort warmers, wearables, or tools that do not require exact temperature feedback. It also keeps the wiring simple and cost low.

4. Dual Protection: Temperature Controller + Thermal Fuse

For demanding applications, a silicone heating pad may include an extra thermal fuse even when a main temperature controller is already present. This provides two layers of protection—one for normal control and one for emergency cutoff.

There are two types of thermal fuses used on silicone heaters:

Single-use thermal fuse

• Permanently disconnects power when the heater reaches a critical temperature
• Used when safety must override reusability

Resettable thermal fuse

• Cuts power when overheated and automatically reconnects after cooling
• Useful for repeated and long-term operation

This dual-protection design is often seen in battery heaters, medical devices, and industrial equipment where overheating cannot be tolerated.

How to Install a Silicone Heating Pad Safely?

A safe installation begins with preparing the surface. The mounting area should be clean, smooth, and free of dust or oil to help the pad stick well. Many silicone heating pads come with high-temperature adhesive backing. If yours does not, you can use suitable silicone-based adhesives or mechanical fastening such as clamps or brackets.

When placing the pad, press it evenly so the entire surface contacts the base. Air gaps can create uneven heat or reduce performance. For metal plates, ensure the pad has full contact to improve heat spread. If the pad has lead wires, guide them carefully and avoid sharp bends near the connection points.

If you install the heater on a battery pack, pipe, or curved surface, wrap it gently and avoid stretching the pad. Use additional straps or thermal tape if needed. Always check the voltage rating and confirm that the heater is matched with the correct power supply before turning it on.

How to Use a Silicone Heater Correctly and Potential Risks?

Even though silicone heating pads are safe, misuse can lead to issues.

Correct Usage Guidelines

• Always use a temperature controller for pads above 50W
• Avoid covering the pad with thick insulating materials
• Do not fold or crease the pad during use
• Keep the pad away from flammable surfaces
• Do not operate if the adhesive begins to peel or bubble
• Inspect cables often for wear or overheating

Potential Risks if Misused

• Overheating due to no temperature control
• Damage to plastic surfaces beneath the pad
• Shortened heater lifespan from bending or vibration
• Burns on skin when used at high temperature for long periods

Following best practices resolves almost all of these issues.

Silicone Heating Pad vs Polyimide Heating Solutions

Silicone and polyimide heaters are both flexible, but they suit different tasks. A silicone heating pad is thicker, more durable, and handles higher mechanical stress. It works well in cold areas, moist environments, and applications needing long-term toughness.

Polyimide (often called Kapton) heaters are thinner and lighter. They react quickly to temperature changes and are common in compact electronics, camera modules, displays, and aerospace sensors. They are ideal when space is very limited. Here is a simple comparison:

Feature	Silicone Heating Pad	Polyimide (PI/Kapton) Heater
Flexibility	High	Very high
Thickness	1–3 mm	0.05–0.2 mm
Max Temp	200–230°C	120–200°C
Durability	Strong, rugged	Thin and delicate
Moisture Resistance	Excellent	Moderate
Typical Use	Machinery, batteries, beds	Electronics, sensors, small devices
Cost	Medium	Slightly higher for custom shapes

Which One to Choose?

• Choose silicone heating pad if:

You need rugged strength, moisture resistance, or large-area heating.

• Choose polyimide heater if:

You need ultra-thin heat, precise temperature control, or compact electronic integration.

FAQs About Silicone Heating Pads

Q1: Can a silicone heating pad run directly from mains power?

Yes, if the pad is rated for 110V or 220V, always confirm voltage before use.

Q2: How long can a silicone heating pad run continuously?

With proper temperature control, many pads can run 24/7 in industrial settings.

Q3: Can I use a silicone heating pad on a LiFePO4 battery in winter?

Yes. A 20–80W pad with 12V or 24V supply is typical for battery heating.

Q4: How do I re-adhere a pad if the glue fails?

Use high-temperature silicone adhesive or thermally conductive epoxy.

Q5: Why does my heating pad heat unevenly?

Uneven contact, poor surface preparation, or insufficient power are common reasons.
