Modern vehicles depend heavily on camera systems to support parking, night monitoring, and advanced driver assistance functions. These cameras work as the eyes of the vehicle. When the lens fogs up, the entire system becomes limited. Drivers often see blurred images on the screen, and ADAS warnings may become unstable. Many customers share the same frustration: fog builds up fast, especially during cold mornings or after rain.
This is where transparent heaters for camera modules step in. These thin, clear, electric heating films keep the lens warm enough to stay free from moisture.

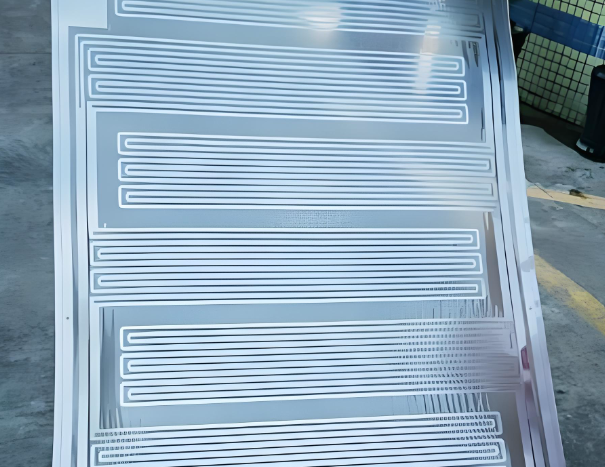

Electric transparent heaters are thin films made from conductive materials such as ITO, metal mesh, or silver nanowire. These films heat up when power is applied, yet remain clear enough for the camera to see through. They are often laminated onto the outer cover of the camera module or integrated into a protective window.
The main purpose of a transparent heating film is simple: keep the lens surface warm, prevent moisture, and stop fog before it forms. Because the film is transparent, the camera image stays clean. Because the heater is thin, it fits into tight modules without changing the mechanical design.
Key characteristics include:
For automotive engineers, this is a clean solution that solves fog without adding bulk or blocking light.
Fogging looks like a small problem, but it creates several real challenges for daily driving and system performance. Many customer complaints fall into a few common patterns.
1. “My rear camera becomes blurry after overnight parking.”
This is one of the most frequent problems. When a vehicle sits outdoors, the lens cover cools down. Moist air touches the cold surface and forms small droplets. This fog stays until the camera warms up, which can take minutes. Transparent heaters keep the lens warm from the moment the system starts, stopping fog before it appears.
2. “ADAS alerts fail when the camera gets foggy.”
ADAS systems need clean images to calculate distance, detect lanes, or identify objects. When fog covers the lens, the image becomes dull and unclear. Even a thin layer of moisture reduces contrast. Transparent heating film keeps the camera stable in these conditions, supporting more accurate detection.
3. “We need a heater that won’t affect image clarity.”
Some customers worry that adding a film might change colors or reduce brightness. Modern transparent heaters control haze very well. Most designs reach over 85–92% transmittance. The material stays nearly invisible, so the final image remains crisp.
4. “Our camera module has limited space.”
Cameras used in vehicles are compact. A thick heater would not fit. Transparent heating films solve this because they are extremely thin. Some types measure less than 100 μm.
5. “Energy consumption must stay low.”
Vehicles have many electronic systems running at the same time. Customers often ask for low power solutions. Transparent heaters work at low voltage and require only a few watts to maintain the surface temperature.
Fog forms when warm, moist air touches a cool surface. On vehicles, temperature changes happen fast. You may park your car overnight when the air is cold. As soon as the sun rises or you start the engine, the temperature changes. This temperature shift creates the conditions where moisture condenses on the camera window.
Common scenarios include:
Since cameras often sit on exposed parts of the vehicle, they face wind, dust, water spray, and rapid temperature swings. Even a small droplet layer is enough to blur the image. Because the camera module is sealed, wiping it manually is not possible. This is why an active anti-fog solution like transparent heating film is needed.
Electric transparent heaters work by applying gentle, even heat across the camera window. When the film heats up, the surface temperature rises just enough to stay above the dew point. This stops moisture from forming on the surface.
The heating process is simple:
The heat level is low, safe, and controlled. Many systems include sensors that activate the heater only when fog is likely. This gives the camera consistent clarity without constant power use.
When a driver starts the car, they want a clear view right away. With a transparent heater, the fog clears in seconds. Most designs reach effective temperature within 3–10 seconds, depending on heater size and wattage.
Several factors support fast response:
This quick response gives drivers confidence and keeps ADAS systems active from the start.
Power consumption stays low. Transparent heaters typically run on:
Power levels usually fall between 2W and 12W. Modern systems also use smart control. The heater only turns on when the vehicle detects low temperature or high humidity. When not needed, it stays off, saving power.
Engineers often prefer transparent heaters because they add minimal load while solving a major visibility problem.
Image quality is one of the most important questions customers ask. A heater should not interfere with clarity. Well-designed transparent heating film maintains high optical performance.
Quality factors include:
Metal mesh and silver nanowire heaters show strong clarity even at larger sizes. ITO heaters also perform well for small modules. All types are tested for distortion, haze level, and weather aging.
| Parameter | Typical Value |
| Transparency | 85–92% |
| Thickness | 0.2 – 1.0mm |
| Max. Heater Dimension | 600*2000mm |
| Min. Heater Dimension | 20*20mm |
| Heating Material | ITO / OCA / PET |
| Power Consumption | 0.5–1.5 W |
| Operating Voltage | 0-220V |
| Response Time | 3–10 seconds |
| Resistance Tolerance | ±10% |
| Optical Haze | <1% |
| Working Temperature | -40°C ~ +100°C (90°C for long time use) |
| Custom Shape | Round, square, irregular camera-window shapes |
| Adhesive | OCA, optically clear adhesive optional |
| Integration | Direct bonding, laminated on lens, or inside module |
| Weather Resistance | UV-resistant Vibration-resistant Humidity-resistant Thermal shock resistant |
Danyu Electronics focuses on custom transparent heating solutions for automotive and industrial use. We work closely with camera suppliers to design heaters that fit tight spaces, deliver stable heat, and stay clear under long-term outdoor exposure.
Our advantages include:
We help customers solve fogging problems with heaters that perform well, look clean, and meet real automotive demands. If you need custom transparent heating film or electric transparent heaters for cameras, Danyu Electronics can support you from design to mass production.
